75.000.000đ 75.000.000đ
Panel Parameters
| LED Panel Size | 65″, 75″, 86″,98″ |
| Backlight Type | LED (DLED) |
| Resolution(H×V) | 3840×2160 (UHD) |
| Color | 10 bit 1.07B |
| Brightness | >400cd/m2 |
| Contrast | 4000:1 (according to panel brand) |
| Viewing angle | 178° |
| Display protection | 3.2 mm tempered explosion-proof glass |
| Backlight lifetime | 50000 hours |
| Speakers | 15W*2 / 8Ω |
System Parameters
| Operating System | Android System | Android 12.0/13.0 as optional |
| CPU (Processor) | Quad Core 1.9/1.2/2.2GHz | |
| Storage | RAM 4/8G; ROM 32G/64G/128G as optional | |
| Network | LAN/ WiFi | |
| Windows System (OPS) | CPU | I5 (i3/ i7 optional) |
| Storage | Memory: 8G (4G/16G/32G optional) ; Hard Disk: 256G SSD (128G/512G/1TB optional) | |
| Network | LAN/ WiFi | |
| OS | Pre-install Windows 10/11 Pro |
Touch Parameters
| Touch technology | IR touch; HIB Free drive,20 points under Android and 50 points under Windows |
| Response speed | ≤ 6ms |
| Operation system | Support Windows , Android, Mac OS, Linux |
| Working temperature | 0℃~60℃ |
| Operating Voltage | DC5V |
| Power consumption | ≥0.5W |
Electrical Performance
| Max Power |
≤250W |
≤300W |
≤400W |
| Standby power | ≤0.5W | ||
| Voltage | 110-240V(AC) 50/60Hz | ||
Connection Parameters and Accessories
| Input ports | AV*1, YPbPR*1, VGA*1, AUDIO*1 ,HDMI*3(Front*1), LAN(RJ45)*1 |
| Output Ports | SPDIF*1, Earphone*1 |
| Other Ports | USB2.0*2, USB3.0*3 (front*3）,RS232*1,Touch USB*2(front*1) |

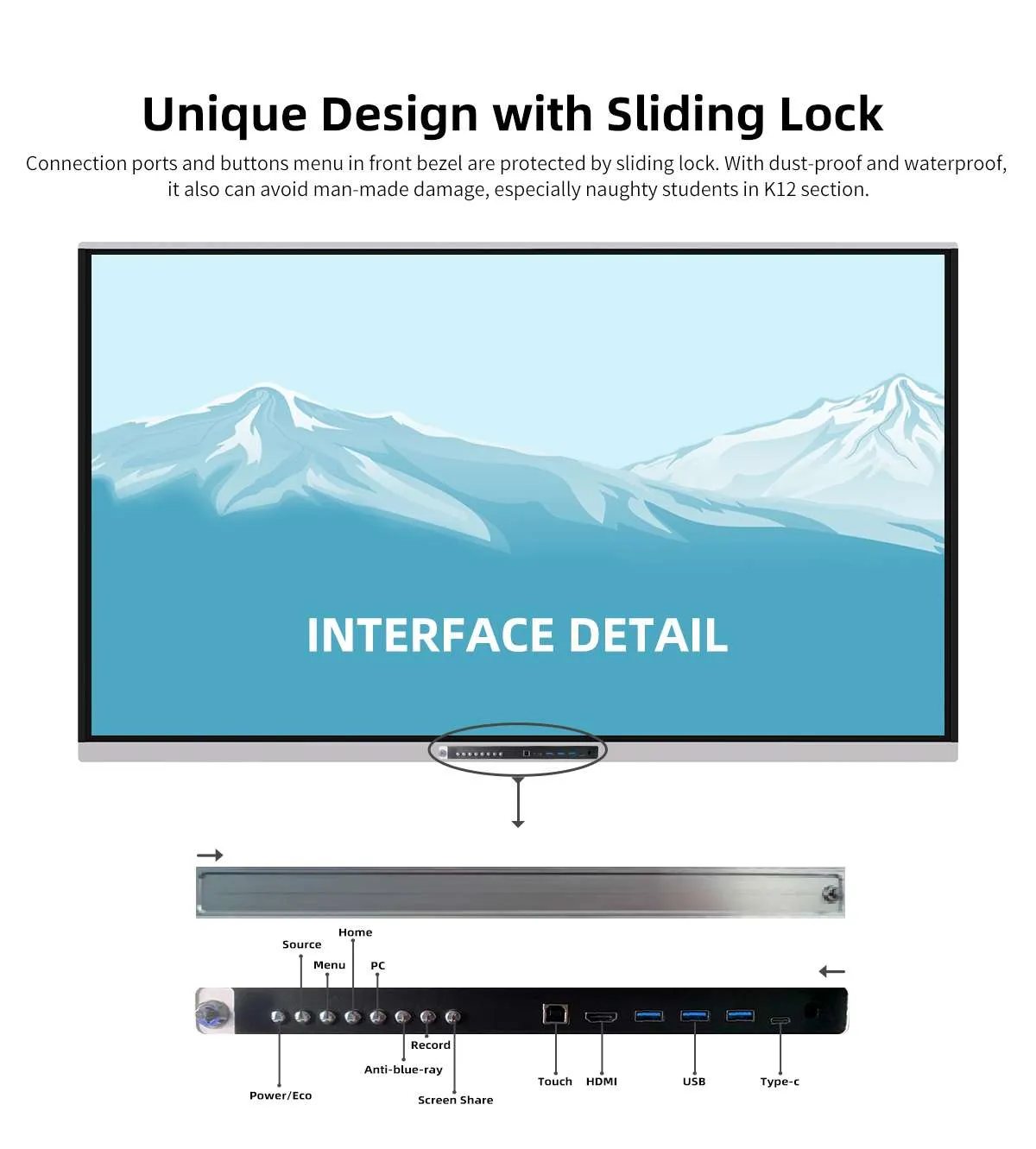

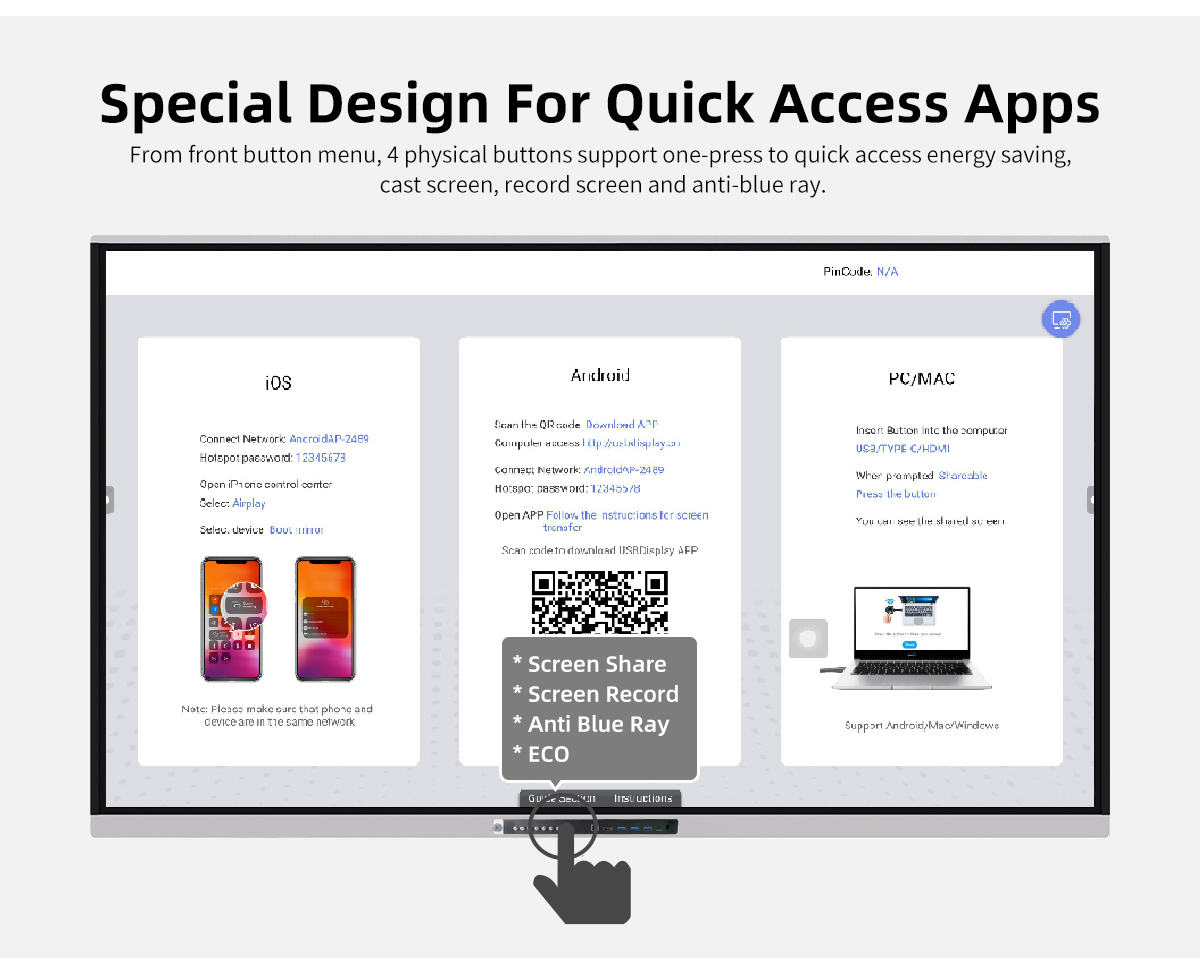

| Function buttons | 8 buttons in front bazel: Power|Eco, Source,Volume,Home, PC, Anti-blue-ray,Screen Share,Screen Record |
| Accessories | Power cable*1;Remote Control*1; Touch Pen*1; Instruction manual*1 ; Warranty card*1; Wall brackets*1 set |
Product Dimension
| Items / Model No. |
FC-65LED |
FC-75LED |
FC-86LED |
FC-98LED |
| Packing dimension |
1600* 200*1014mm |
1822* 200*1180mm |
2068* 200*1370mm |
2322* 215*1495mm |
| Product dimension |
1494.3* 86*903.5mm |
1716.5* 86*1028.5mm |
1962.5* 86*1167.3mm |
2226.3* 86*1321mm |
| Wall mount VESA |
500*400mm |
600*400mm |
800*400mm |
1000*400mm |
| Weight(N.W/G.W) |
41kg/52kg |
516kg/64kg |
64Kg/75Kg |
92Kg/110Kg |
